Product overview

The valve is suitable for high hardness particles or soft particles but corrosive medium pipelines for opening and closing. Nominal pressure 1.6MPA, suitable for temperature less than or equal to 200 degrees. The parts in contact with the medium are structural ceramic materials, which have very high chemical stability and hardness (Rockwell hardness HRC90), second only to diamond. Therefore, the valve has very high wear resistance, corrosion resistance, erosion resistance, and good thermal insulation performance, small thermal expansion. The ball is made of advanced grinding equipment and technology, with high roundness precision and good surface quality. After grinding with the seat, the self-lubricating property of ZrO2 ceramics can achieve good sealing performance. Ceramic good wear resistance, so that the valve durable, high reliability, long service life, titanium valve and Monel valve 2-4 times

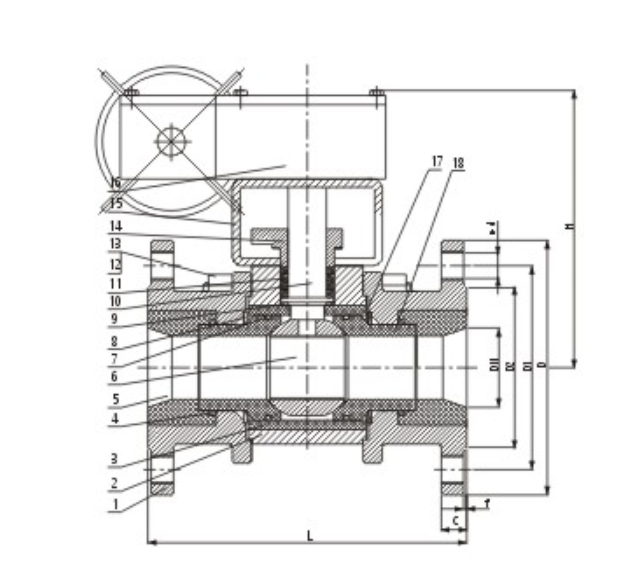

Main shape and connection dimensions

DN(mm)	PN(MPa)	L	D	D1	D2	C	H1	H2	n-φd
50	16	203	165	125	99	20	185	150	4-φ18
65		222	185	145	118	20	215	150	4-φ18
80		241	200	160	132	20	230	150	8-φ18
100		305	220	180	156	20	240	180	8-φ18
125		356	250	210	184	22	265	180	8-φ18
150		394	285	240	211	24	300	180	8-φ22
200		457	340	295	266	24	355	200	12-φ22
250		533	405	355	319	26	420	200	12-φ26
