Product Overview
A new type of filter is an indispensable device on the medium pipeline, usually installed at the inlet end of a pressure reducing valve, relief valve, constant water level valve, or other equipment, to eliminate impurities such as dirt and rust in the medium and protect the normal use of valves and equipment.

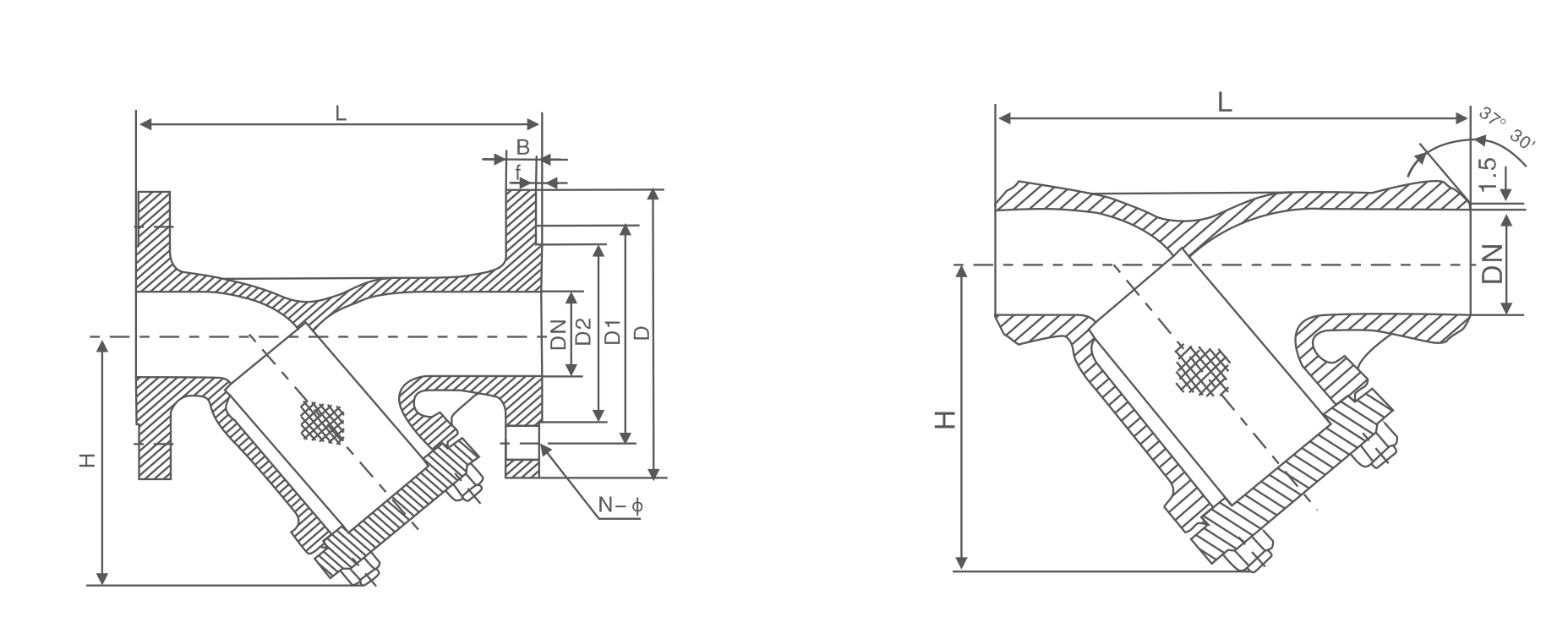

Main connect dimensions

DN	L	D	D1	D2	b	f	Z-Φd	H
15	130	95	65	47	14	3	4-Φ14	74
20	150	105	75	58	16	3	4-Φ14	85
25	160	115	85	68	16	3	4-Φ14	95
32	180	140	100	78	18	3	4-Φ18	100
40	200	150	110	88	18	3	4-Φ18	120
50	230	165	125	102	18	3	4-Φ18	135
65	290	185	145	122	18	3	4-Φ18	185
80	310	200	160	138	22	3	8-Φ18	200
100	350	220	180	158	24	3	8-Φ18	235
125	400	250	210	188	26	3	8-Φ18	285
150	480	285	240	212	26	3	8-Φ23	300
200	600	340	295	268	30	3	12-Φ23	385
250	730	405	355	320	32	3	12-Φ27	458
300	850	460	410	378	32	4	12-Φ27	510
350	980	520	470	438	36	4	16-Φ27	650
400	1100	580	525	490	38	4	16-Φ30	740
